LY-X-3D-I Low Altitude Radar with AESA System for 360° Coverage and Pitch and Azimuth Scanning in Ku Band
Product Overview

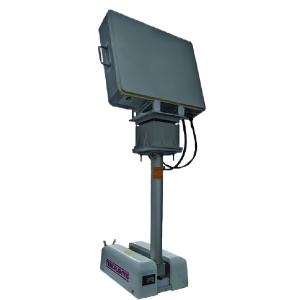

The LY-X-3D-I digital phased array radar is a fully solid-state, fully coherent, all-digital active phased array three-coordinate radar. It is primarily designed for detecting and tracking low-altitude airspace objects, such as general aviation aircraft and drones, particularly slow-moving and small targets. The radar provides real-time output of targets' range, azimuth, altitude, and velocity, forming a three-dimensional dynamic situational awareness of low-altitude targets. This supports low-altitude surveillance and interception systems by offering effective informational assistance. The radar is highly reliable for missions and can automatically capture targets, providing efficient monitoring of non-cooperative and high-threat targets in key areas.
Product Features
Digital Array Architecture: Fully integrated and software-defined processing approach.
Digital Beamforming (Receive and Transmit): Adaptive airspace coverage based on mission profiles.
Compact and Integrated Design: Low-cost, high reliability, and high integration.
Long Dwell Time: Superior clutter suppression capability.
Customizable Operational Waveforms and Bandwidths: Multiple options available.
Enhanced Anti-Jamming Measures: Expandable functionalities, including sidelobe cancellation, stealth filtering, and interference track rejection.
Technical Specifications
|
Category |
Specifications |
|
|
Operating Frequency |
X-band, bandwidth over 200 MHz, with 10 operational frequency points |
|
|
Detection Range |
Small Target Mode |
≥6 km (RCS=0.01 m², customizable; enhanced mode up to 8 km). |
|
General Aviation Mode |
≥25 km (RCS=2 m²). |
|
|
Minimum Detection Range |
≤200m |
|
|
Altitude Coverage |
Up to 3500 m (for a 2 m² target). |
|
|
Azimuth |
0°～360° |
|
|
Elevation |
0°–40° (expandable to 55°). |
|
|
Measurement Accuracy |
Range |
≤20 m (RMS). |
|
Azimuth |
≤0.4°(RMS) |
|
|
Altitude |
≤0.5°(RMS) |
|
|
Target Processing Capacity |
200 tracks/frame, 5000 points/frame. |
|
|
Signal Processing |
Digital beamforming, digital pulse compression, MTD, CFAR, clutter mapping, etc. |
|
|
Antenna Rotation Speed |
12 or 24 RPM. |
|
|
Environmental Adaptability |
Operating Temperature |
-30°C to +50°C (outdoor equipment). |
|
Relative Humidity |
98% (at 35°C, outdoor equipment) |
|
|
Altitude |
≤5000m |
|
|
Power Supply |
Power Input |
220V±10%,50Hz±5% |
|
System Power Consumption |
≤1000W |
|
|
Optional Features |
Dual Beidou Timing and North-Orientation System |
|
