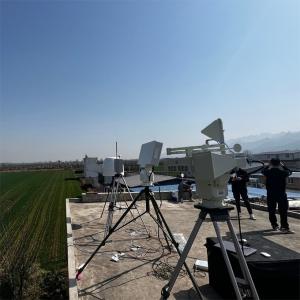

Our advanced 3D All-Solid-State Air Defense Radar and Omnidirectional Multi-Band Jamming System form a comprehensive airspace protection solution. Designed for high-speed target detection, tracking, and countermeasures, this system ensures robust security for critical areas.
Key Features
Multi-Target Tracking: Real-time detection of speed, trajectory, and spatial position for over 200 targets simultaneously.
Anti-Clutter Algorithms: Integrated advanced algorithms to suppress strong clutter interference.
Full Airspace Coverage: Active phased array antenna enables 360° azimuth and 0°–90° pitch coverage.
Compact & Reliable: Modular all-solid-state design with military-grade durability (IP67 protection).
Fail-Safe Mechanism: Worm gear transmission with self-locking during power failures.
Technical Specifications
| Parameter | Value |
|---|---|
| Radar Type | 2D Active Phased Array |
| Frequency Band | X-Band |
| Scan Range | Azimuth: ±15.5° (Electrical), 0°–360° (Mechanical) Pitch: ±30° (Electrical), 0°–90° (Mechanical) |
| Detection Range | ≥8 km (RCS=0.01m²) ≥15.5 km (RCS=0.1m²) ≥25 km (RCS=1m²) |
| Resolution | Range: 15m Azimuth: ≥5° Pitch: ≥9° |
| Accuracy | Range: ±20m Azimuth/Pitch: ±0.8° |
| Max Target Speed | 0.8–100 m/s |
| Transmit Power | 256W |
| Dimensions & Weight | ≤686mm × 411mm × 145mm ≤55 kg |
Key Features
Wideband Coverage: Jams 20–6000 MHz, targeting UAV image transmission, control links, and GPS signals.
Multi-Antenna Design: 3 flat-panel antennas + 1 PCB antenna for omnidirectional 360° coverage.
Rapid Response: Activates countermeasures within 3 seconds.
Adaptive Range: Effective up to 1.5–2 km (varies by UAV model).
Technical Specifications
| Parameter | Value |
|---|---|
| Counter Mode | Radio Frequency Suppression |
| Targets | UAVs, Communication Links, Navigation Signals |
| Frequency Bands | 400MHz, 800MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz (Optional) |
| Coverage | Full 360° Airspace |
| Power Consumption | 960W (Active Mode) |
| Dimensions & Weight | 550mm × 500mm × 300mm ≤55 kg |
| Protection Rating | IP67 |
Integrated Control: Military-grade embedded system ensures stable turntable and antenna control.
High Reliability: All-solid-state components with modular design for minimal downtime.
Flexible Deployment: Compact size and lightweight for rapid setup in diverse environments.
Scalable Security: Combine radar detection and jamming for layered airspace defense.
Applications: Critical infrastructure protection, military bases, border security, and event safety.
Custom configurations available. Contact us for tailored solutions!
