Compact 70kg 3D Radar System with ≤1.5s Refresh Rate for Rapid Threat Response
Product Overview

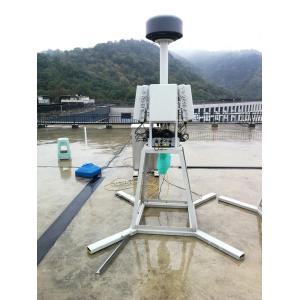

The HYH 223-5C1K-3D is a cutting-edge security surveillance radar system designed for detecting low-altitude drones and airborne threats. Built with advanced phased array and pulse Doppler technology, this C-band radar ensures superior performance in all weather conditions. Unlike its single-panel counterpart (HYH 223-1C1K), the 5C1K-3D features a 4-panel phased array configuration paired with a dedicated 3D height-finding radar, enabling 360° azimuth coverage and precise altitude measurement for comprehensive airspace monitoring.
Key Features
360° + 3D Detection: Four-panel phased array system with integrated height-finding radar for full-coverage surveillance.
High Precision: ≤10m distance accuracy, ≤1.0° azimuth accuracy, and ≤0.2m/s speed precision.
Advanced MIMO Technology: Multi-Input Multi-Output system enhances target resolution and tracking.
Wide Detection Range: Detects drones as small as DJI Phantom 3/4 (RCS≈0.01m²) up to 1.2km.
All-Weather Reliability: Operates in extreme temperatures (-40°C to +60°C) with rain, dust, sand, and corrosion resistance.
Compact & Robust: Lightweight (≤70kg) and durable design for easy deployment in critical environments.
Applications
Ideal for safeguarding high-security zones:
Airports
Military Bases
Border Surveillance
Critical Infrastructure Protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Frequency | C-Band (5.5–5.8 GHz) |
| Detection Range | 1.2 km (DJI Phantom 3/4, Mavic series) |
| Min. Detection Range | ≤100 m |
| Azimuth Coverage | 360° (4-panel phased array) + 3D height measurement |
| Elevation Coverage | 40° |
| Data Rate | ≤1.5 seconds |
| Peak Output Power | 4W per panel |
| Power Supply | AC220V / 250W |
| Interface | Ethernet (UDP protocol) |
| Dimensions | 725mm × 725mm × 735mm (2D mode) / 725mm × 725mm × 1400mm (3D mode) |
| Operating Temp. | -40°C to +60°C |
| Environmental Rating | Rainproof, Dustproof, Sandproof, Moisture-resistant, Mold-resistant, Salt-resistant |
Why Choose the HYH 223-5C1K-3D?
Combining high-speed data processing, military-grade durability, and 3D spatial tracking, this radar delivers unmatched situational awareness for counter-drone operations and airspace security. Its modular design ensures rapid deployment and integration with existing defense systems, making it a critical asset for modern surveillance needs.
