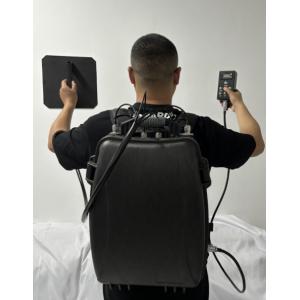

With the rapid growth of the drone market, drones are widely used in various aspects of society. However, their misuse, such as unauthorized flights in restricted zones, drug delivery, and military applications, has raised significant concerns. The DKSW-8D is designed to detect, deter, and force-land rogue drones within visual range. Custom-built to meet client needs, this backpack-style device features a built-in battery for extended portability and includes both omnidirectional and handheld directional antennas for versatile operation. Utilizing narrowband interference and RF suppression technologies, it disrupts the communication link between the drone and its controller, forcing the drone to return or land. Additionally, it blocks video transmission, preventing privacy breaches and securing critical areas.
Portable Backpack Design: Lightweight and easy to carry.
Built-in Battery: Integrated power supply for unrestricted use.
Single-Channel Control: Simplified operation with independent switches.
Dual Antenna Modes: Omnidirectional and directional antennas for flexible deployment.
Optimized Antenna Performance: Enhanced countermeasure range.
Battery Display: Real-time power level monitoring.
Optional External Battery: Extended runtime (additional cost).
| Parameter | Details |
|---|---|
| Output Frequency | 433M: 428-438MHz, 900M: 860-930MHz, 1.2G: 1160-1280MHz, 1.4G: 1400-1450MHz, |
| 1.5G: 1550-1620MHz, 2.4G: 2400-2500MHz, 5.2G: 5150-5350MHz, 5.8G: 5725-5850MHz | |
| Average Output Power | 50W/47dbm |
| Channel Output Power | 20dbm/30KHz (min) |
| Power Supply | AC220V-DC5V |
| Battery Capacity | 20A |
| Device Weight | 15kg |
| Packaged Weight | 35kg |
| Package Dimensions | 75×45×42 cm |
Inspect the device for damage and verify all accessories are included.
Connect antennas to the corresponding ports and secure them tightly.
Attach the control handle to the main unit.
Check the battery level using the display.
Press all function buttons; indicator lights will activate.
For directional use, aim the antenna at the target drone.
The device takes effect within 30 seconds, forcing the drone to land or return.
After use, press the function buttons to turn off the indicators.
| Item | Quantity |
|---|---|
| Flight Case | 1 |
| Main Unit | 1 |
| Omnidirectional Antennas | 8 |
| Directional Antenna | 1 (optional) |
| Control Handle | 1 |
| Connection Cable | 1 |
| Power Adapter | 1 |
1-year warranty for non-human-induced damages.
Portability: Backpack design for easy transport and deployment.
Versatility: Dual antenna modes for diverse operational needs.
Efficiency: Rapid response within 30 seconds.
Security: Blocks video transmission to protect privacy.
