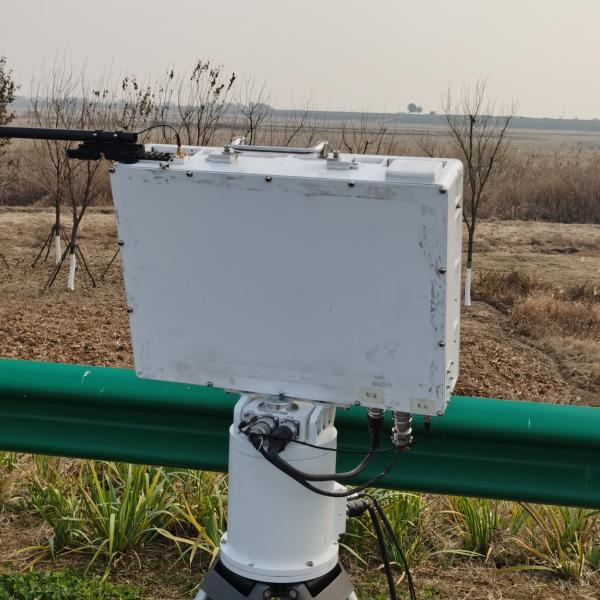

Low Altitude Radar, also known as Low Level Radar System, is a cutting-edge radar technology designed for precise and efficient surveillance of low-altitude airspace. One of the standout features of this radar system is its impressive range of 100 kilometers, allowing for extensive coverage of the designated airspace.
The Low Altitude Radar is equipped with an antenna size of 1.2 meters by 1.2 meters, ensuring optimal performance and accuracy in detecting and tracking aerial targets. This carefully designed antenna size plays a crucial role in enhancing the radar system's capabilities and efficiency.
With a remarkable data refresh rate, the Low Altitude Radar ensures timely and reliable information updates. The search data refresh rate is set at a speedy ≤3 seconds, enabling real-time monitoring and analysis of the airspace. Additionally, the target acquisition sequence (TAS) data refresh rate is impressively quick at ≤0.5 seconds, facilitating swift and precise tracking of moving targets.
For long-range detection capabilities, the Low Altitude Radar is equipped to detect targets at distances of ≥25 kilometers with a radar cross-section (RCS) of 1 square meter. Even for smaller targets with an RCS of 0.01 square meters, the radar system can detect them at distances of ≥8 kilometers. This demonstrates the radar system's versatility and effectiveness in detecting targets of varying sizes at significant ranges.
One of the key strengths of the Low Altitude Radar is its maximum detection height of ≥3000 meters. This high altitude detection capability allows the radar system to effectively monitor and track aerial targets operating at elevated altitudes, providing comprehensive surveillance coverage.
A Low Altitude Radar, also known as a Low Level Radar System, is a specialized radar system designed for monitoring and detecting targets flying at low altitudes. This type of radar system is ideal for various application occasions and scenarios due to its unique attributes. One of the key features of the Low Altitude Radar is its Frequency Hopping capability, which enhances its resistance to interference and detection by adversaries. This makes it well-suited for military applications where secure and reliable communication is essential. With a range of 100 Km, the Low Altitude Radar is capable of detecting targets at a considerable distance. This long range detection capability is particularly useful in border surveillance, coastal monitoring, and air defense scenarios. The Maximum Detection Height of the Low Altitude Radar is equal to or greater than 3000 M, allowing it to effectively track targets flying at low altitudes. This attribute is crucial for detecting low-flying aircraft, drones, and other airborne threats. Equipped with a 360-degree Antenna Rotation, the Low Altitude Radar provides comprehensive coverage and can track targets from all directions. This feature is beneficial for continuous surveillance and monitoring of the airspace. In terms of Long Range Detection, the Low Altitude Radar can detect targets at a distance of at least 25 Km with a Radar Cross Section (RCS) of 1 M², and at least 8 Km with an RCS of 0.01 M². This makes it suitable for both short-range and long-range threat detection applications. Overall, the Low Altitude Radar is a versatile and reliable radar system that can be effectively used in military, border security, air traffic control, and critical infrastructure protection scenarios.
Product Customization Services for the Low Altitude Radar product:
Scanning Mode: Pulse Doppler
Transmitter Power: 10 KW
Range: 100 Km
Weight: Less Than 48 Kg
Scanning Range: Azimuth: 0°-360°, Pitch: 0°-60°
